End Load Air wipe
COSMOS offers End Load Wipe in two ( 2 ) versions:
AWM 51 to dry wires of maximum diameter 2.3 mm
However, for long term usage, it is advisable to switch to the wiping cylinder dedicated for the particular wire diameter.
AWM 61 to dry wires of maximum diameter 4.2 mm
The maximum diameter is also the optimum diameter of the wire at which the air wipe cleanses at the highest
efficiency. It is possible to cleanse wires of a smaller diameter using the same wiping cylinder at a reduced
efficiency, without adverse consequences.
We depict below the air wipes’ dimensions, reflecting the small footprints that facilitate installation.

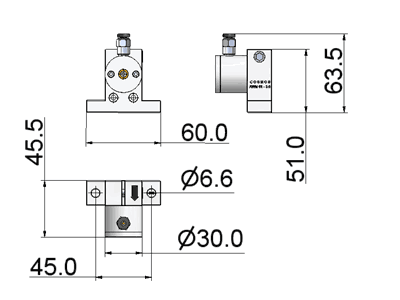

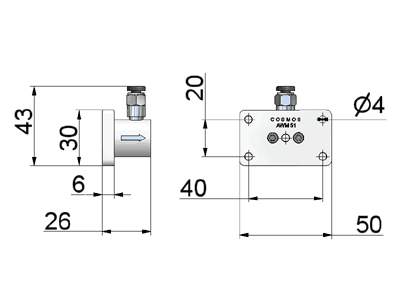

AWM 51 Dimensions AWM 61 Dimensions
